ConcurrentHashMap: Call only one method per key

May 26, 2019

Each method of ConcurrentHashMap is thread-safe. But calling multiple methods from ConcurrentHashMap for the same key leads to race conditions. And calling the same method from ConcurrentHashMap recursively for different keys leads to deadlocks.

Let us look at an example to see why this happens:

Calling multiple methods

In the following test, I use two methods from ConcurrentHashMap for the same key 1. The method update, line 4 till 12, first gets the value from the ConcurrentHashMap using the method get. Than update increments the value and put it back using the method put, line 7 and 10:

public class TestUpdateWrong {
	private final ConcurrentHashMap<Integer,Integer>  map = new  ConcurrentHashMap<Integer,Integer>();
	@Interleave(group=TestUpdateWrong.class,threadCount=2)
	public void update()  {
			Integer result = map.get(1);
			if( result == null )  {
				map.put(1, 1);
			}
			else	{
				map.put(1, result + 1 );
			}
	}
	@Test
	public void testUpdate() throws InterruptedException	{
		ExecutorService executor = Executors.newFixedThreadPool(2);
		executor.execute( () -> { update();   }  );
		executor.execute( () -> { update();   }  );
		executor.shutdown();
		executor.awaitTermination(10, TimeUnit.MINUTES);
	}
	@After
	public void checkResult() {
		assertEquals( 2 , map.get(1).intValue() );
	}
}

You can download the source code of all examples from Github here.

To test what happens I use an ExecutorService to call the method update with two threads, line 16 and 17. To test all thread interleavings I use the annotation Interleave, line 3, from vmlens. vmlens is a tool I have written to test multi-threaded Java software. The Interleave annotation tells vmlens to test all thread interleavings for the annotated method. Running the test we see the following error:

java.lang.AssertionError: expected:<2> but was:<1>

To see why the result is one, not two as expected we can look at the report vmlens generated:

So the problem is that first both threads call get and after that both threads call put. So both threads see an empty value and update the value to one. Which leads to a result of one and not as expected two. The trick to solving this race condition is to use only one method instead of two methods to update the value. Using the method compute we can do this. So the correct version looks like this:

public void update() {
	map.compute(1, (key, value) -> {
		if (value == null) {
			return 1;
		} else {
			return value + 1;
		}
	});
}

Calling the same method recursively

Now let us look at an example for calling the same method from ConcurrentHashMap recursively:

public class TestUpdateRecursive {
	private final ConcurrentHashMap<Integer, Integer> map =
			new ConcurrentHashMap<Integer, Integer>();
	public TestUpdateRecursive() {
		map.put(1, 1);
		map.put(2, 2);
	}
	public void update12() {
		map.compute(1,  (key,value) ->   {
			   map.compute(2, ( k , v ) ->  {  return 2; }  );
		       return 2;
		});
	}
	public void update21() {
		map.compute(2,  (key,value) ->   {
			   map.compute(1, ( k , v ) ->  {  return 2; }  );
		       return 2;
		});
	}
	@Test
	public void testUpdate() throws InterruptedException	{
		ExecutorService executor = Executors.newFixedThreadPool(2);
		executor.execute( () -> { update12();   }  );
		executor.execute( () -> { update21();   }  );
		executor.shutdown();
		executor.awaitTermination(10, TimeUnit.MINUTES);
	}

}

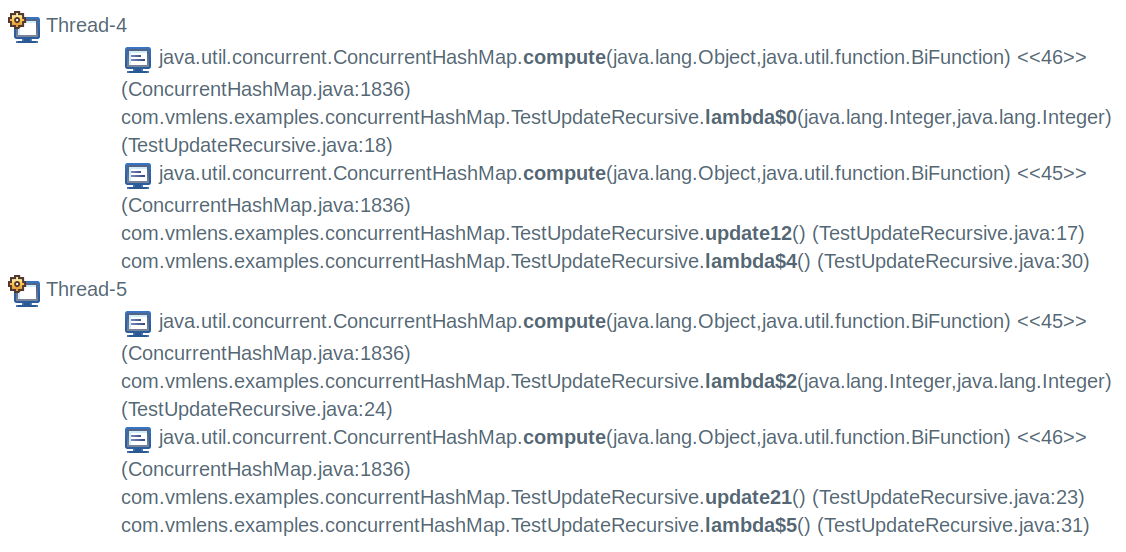

Here we call the compute method inside of the compute method for different keys. Once for the key one than two and once for the key two than one. If we run the test we see the following deadlock:

To understand why this deadlock happens, we have to look at the internals of the ConcurrentHashMap. ConcurrentHashMap uses an array to store the mapping between the keys and the values. Every time we update such a mapping of the ConcurrentHashMap locks the array element in which the mapping is stored. So in our test, the call to compute for the key one locked the array element for the key one. And then we try to lock the array element for the key two. But this key is already locked by the other thread who called compute for key two and tries to lock the array element for the key one. A deadlock.

Note that only updates need a lock to an array element. Methods which reads only, like for example get, do not use locks. So it is no problem to use a get method inside a compute call.

Conclusion

Using the ConcurrentHashMap in a thread-safe way is easy. Select the one method which fits your need. And use it exactly once per key
